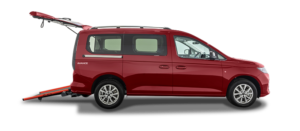

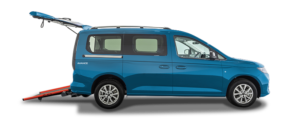

Boundless Blue*
Lava Red*

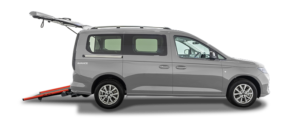

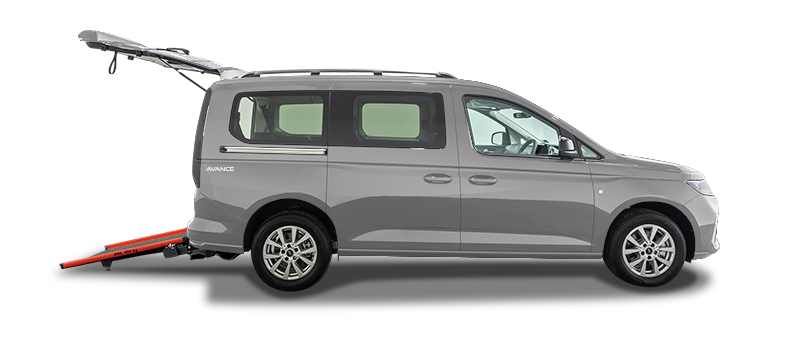

Stardust Silver*

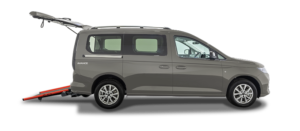

Dusky Silver*

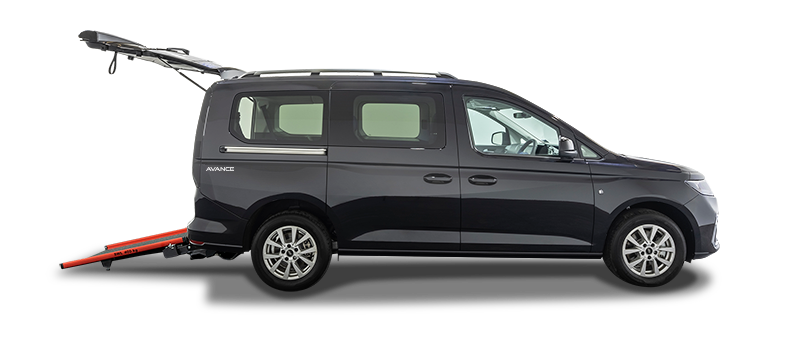

Ink Black*

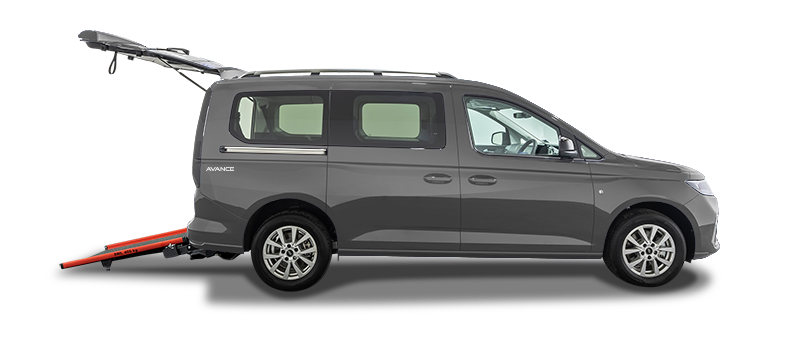

Comet Grey*

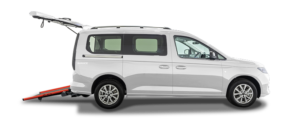

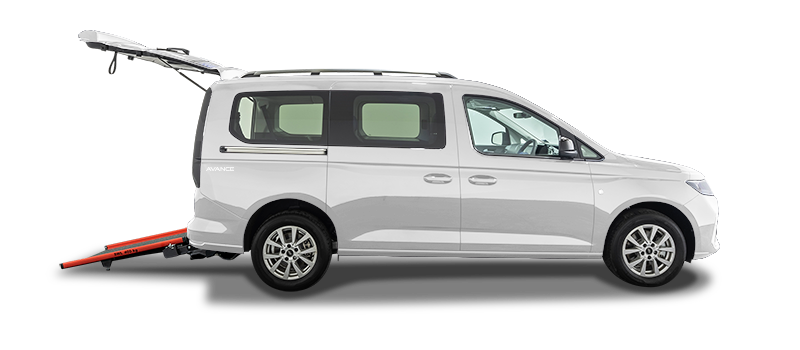

Frozen White*

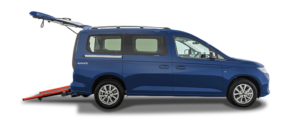

Midnight Blue*
Choose Your Colour
*Colour palette for illustrative purposes only.

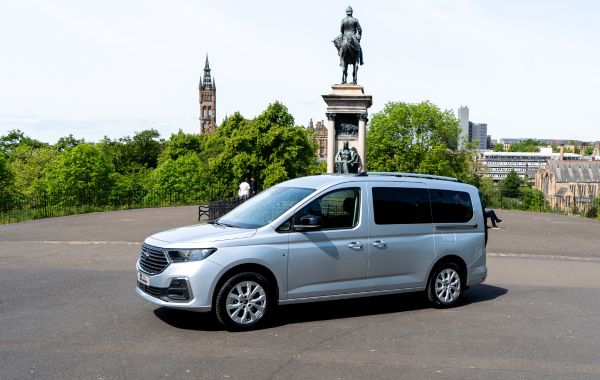

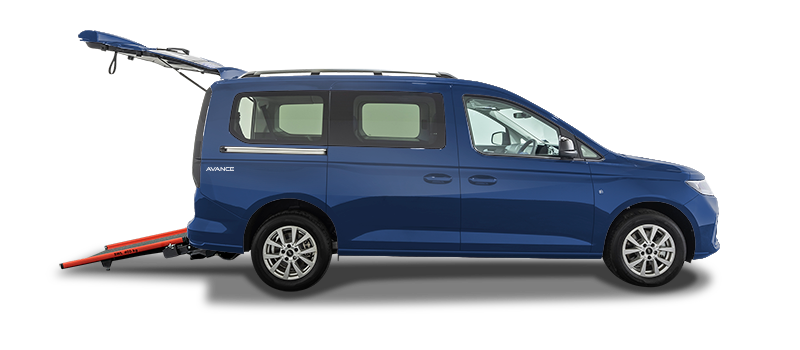

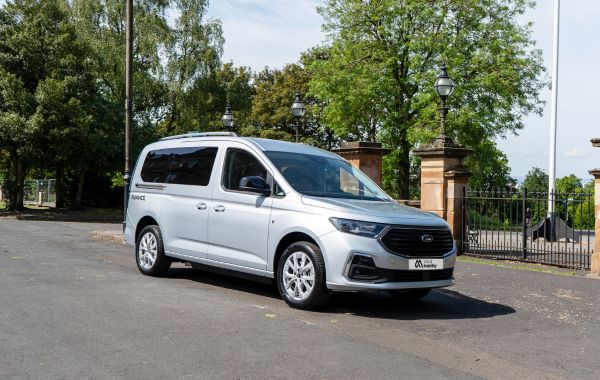

Ford Connect Avance™
2-4 Seats | 1 Wheelchair

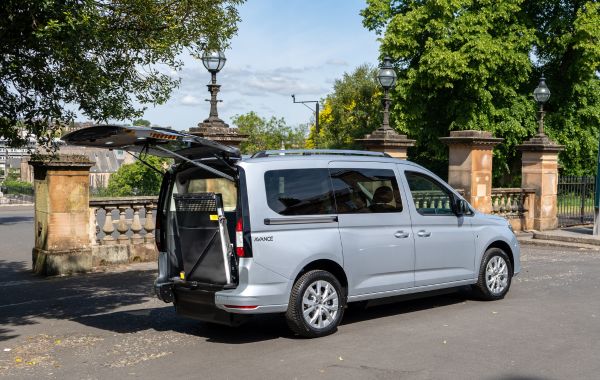

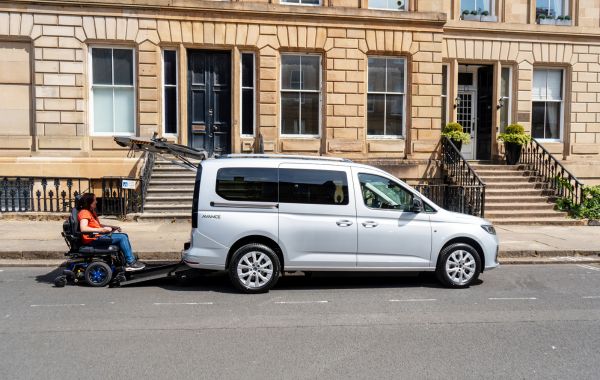

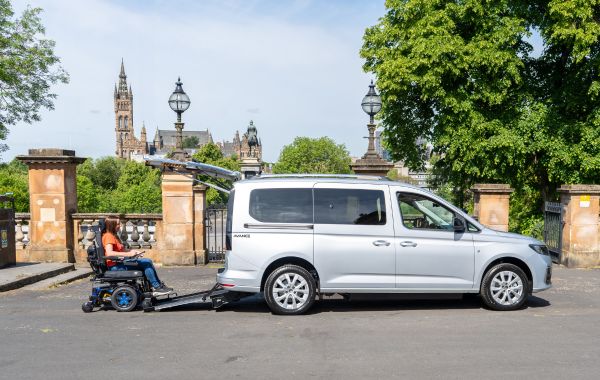

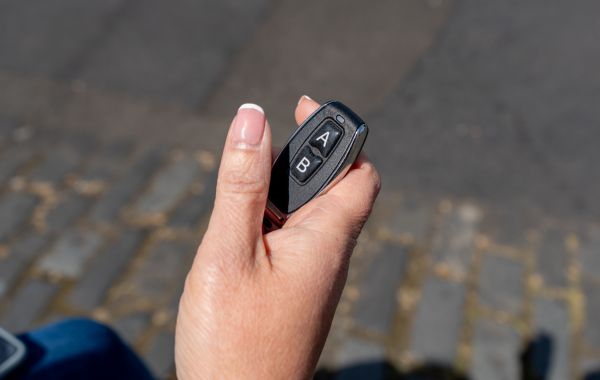

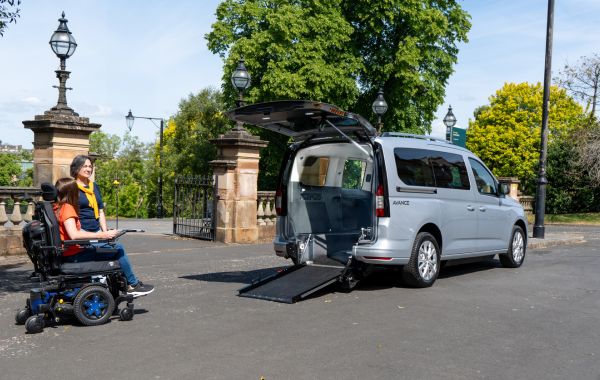

The Ford Connect Avance™ is a fabulous new addition to our range of wheelchair-accessible vehicles. If you like Ford, you’ll love the Ford Connect Avance™. Based on the Titanium Connect, the Ford Avance™ gives you the option of driving from your wheelchair/power chair or riding as a front passenger. With the push of a button on your key fob, the tailgate will automatically open and the low-inclination rear ramp will deploy for wheelchair access. Getting into your WAV is quick and easy, and the Ford Avance™ will give you complete independence whether you’re driving it from your chair or riding in your wheelchair as a front passenger.
Model Options

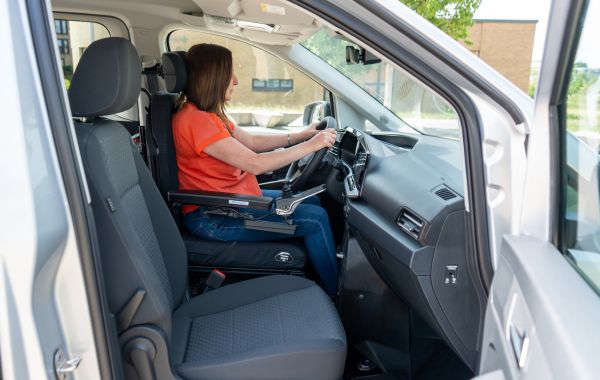

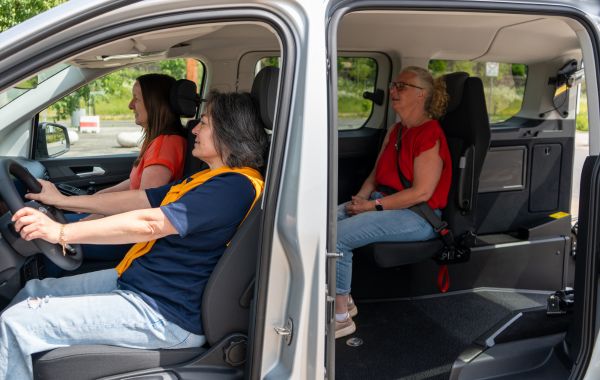

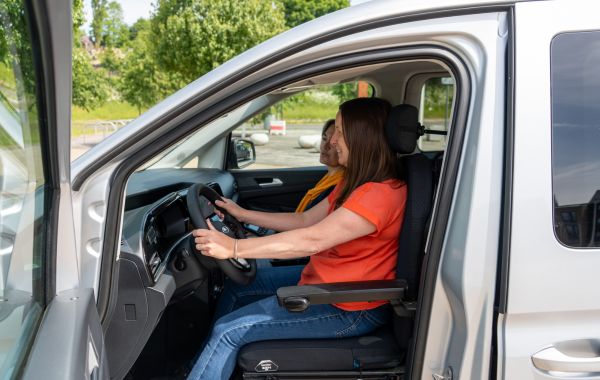

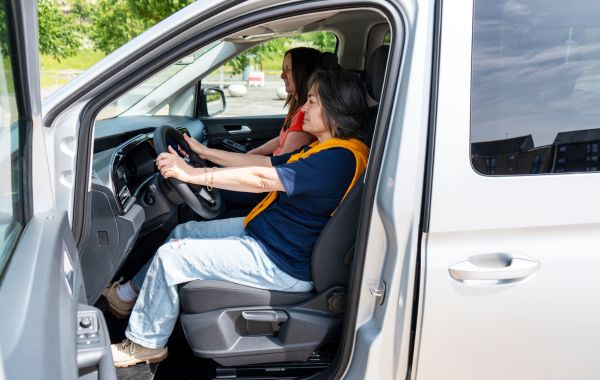

You can drive from the comfort of your wheelchair or ride in the front seat as a passenger in your wheelchair.

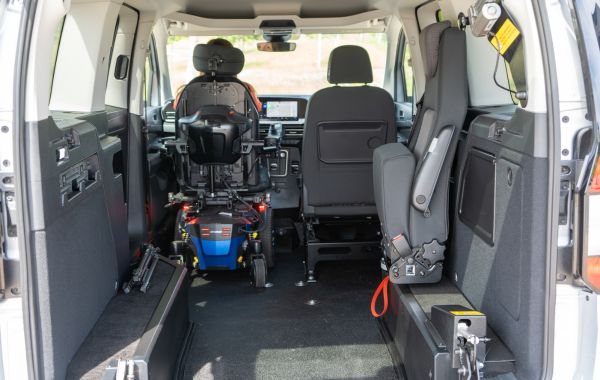

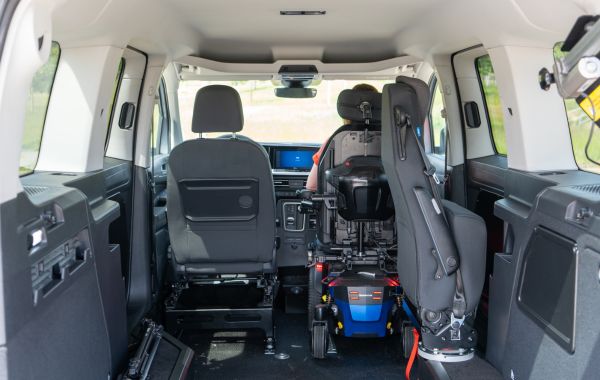

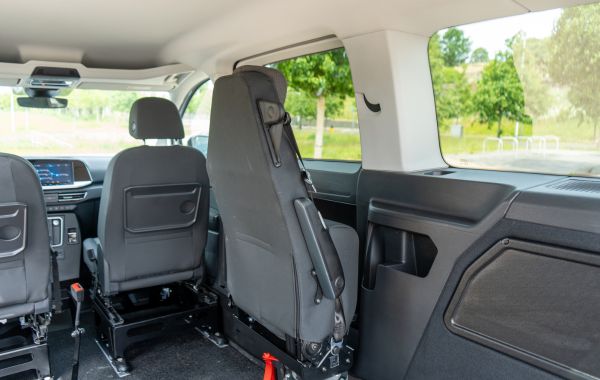

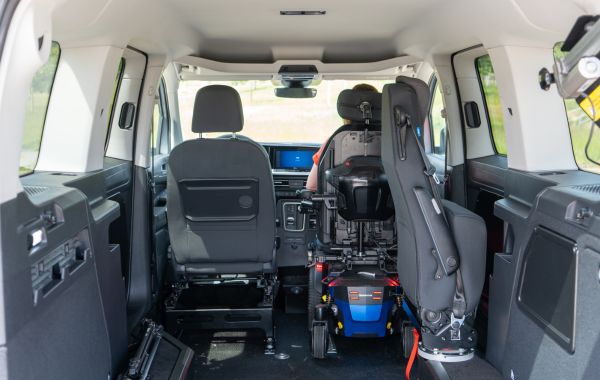

The standard seating configuration is as follows: two front seats (one removable for the wheelchair occupant) and two fold-down seats in the second row.
As an option, the configuration includes a front seat that can be switched between left and right, and two folding seats in the second row.
In all cases, a third folding seat can be added in the third row at an additional cost.

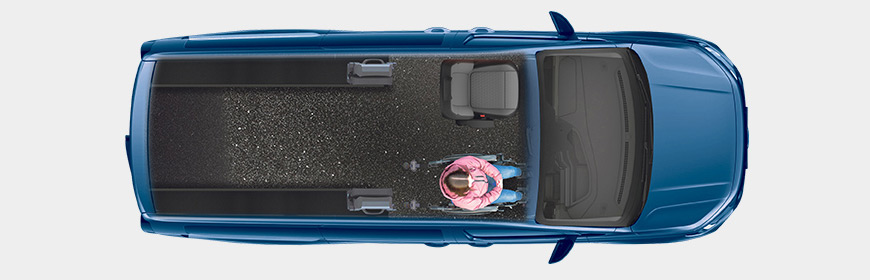

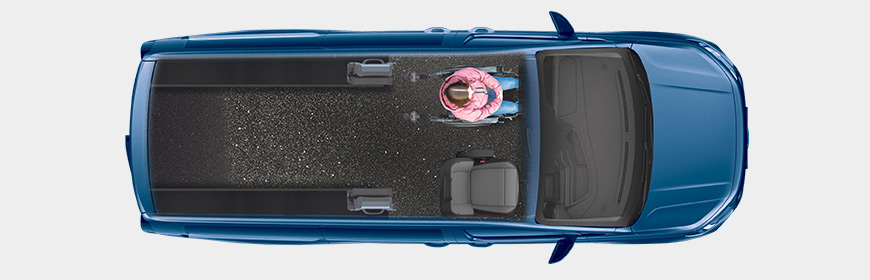

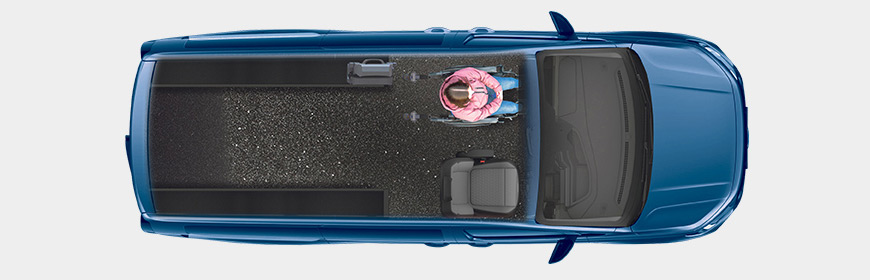

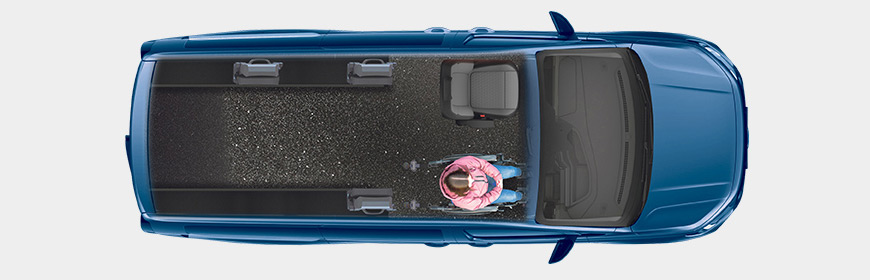

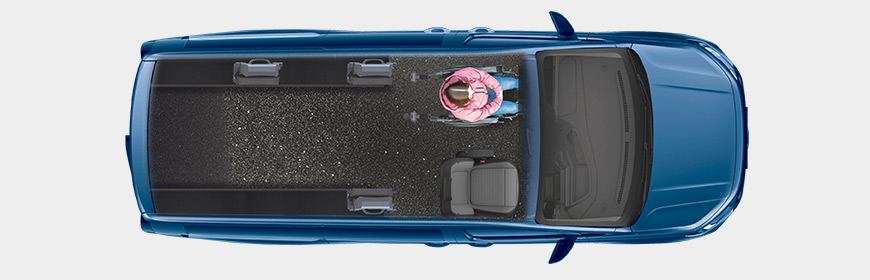

Avance Layout Options
2 Seats | 1 Wheelchair
Wheelchair Travelling Position
| Wheelchair | Front | Rear |
|---|---|---|
| Width (mm) | 1,355 | 790 |
| Length (mm) | 1,410 | 1,150 |
| Seated Eyeline (mm) | 1,250 | 1,230 |
| Height (mm) | 1,345 | 1,430 |
| Weight (kg) | 200 |
200 |
Avance Layout Options
3 Seats | 1 Wheelchair
Wheelchair Travelling Position
| Wheelchair | Front | Rear |
|---|---|---|
| Width (mm) | 1,355 | 790 |
| Length (mm) | 1,410 | 1,150 |
| Seated Eyeline (mm) | 1,250 | 1,230 |
| Height (mm) | 1,345 | 1,430 |
| Weight (kg) | 200 |
200 |
Avance Layout Options
4 Seats | 1 Wheelchair
Wheelchair Travelling Position
| Wheelchair | Front | Rear |
|---|---|---|
| Width (mm) | 1,355 | 790 |
| Length (mm) | 1,410 | 1,150 |
| Seated Eyeline (mm) | 1,250 | 1,230 |
| Height (mm) | 1,345 | 1,430 |
| Weight (kg) | 200 |
200 |
Avance Layout Options
2 Seats | 1 Wheelchair
Wheelchair Travelling Position
| Wheelchair | Front | Rear |
|---|---|---|
| Width (mm) | 1,355 | 790 |
| Length (mm) | 1,410 | 1,150 |
| Seated Eyeline (mm) | 1,250 | 1,230 |
| Height (mm) | 1,345 | 1,430 |
| Weight (kg) | 200 |
200 |
Avance Layout Options
3 Seats | 1 Wheelchair
Wheelchair Travelling Position
| Wheelchair | Front | Rear |
|---|---|---|
| Width (mm) | 1,355 | 790 |
| Length (mm) | 1,410 | 1,150 |
| Seated Eyeline (mm) | 1,250 | 1,230 |
| Height (mm) | 1,345 | 1,430 |
| Weight (kg) | 200 |
200 |
Avance Layout Options
4 Seats | 1 Wheelchair
Wheelchair Travelling Position
| Wheelchair | Front | Rear |
|---|---|---|
| Width (mm) | 1,355 | 790 |
| Length (mm) | 1,410 | 1,150 |
| Seated Eyeline (mm) | 1,250 | 1,230 |
| Height (mm) | 1,345 | 1,430 |
| Weight (kg) | 200 |
200 |
Speak to your Mobility Advisor about the seating layouts available.
Dimensions PDF

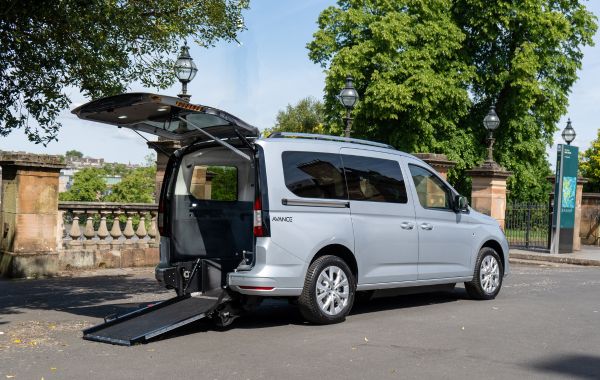

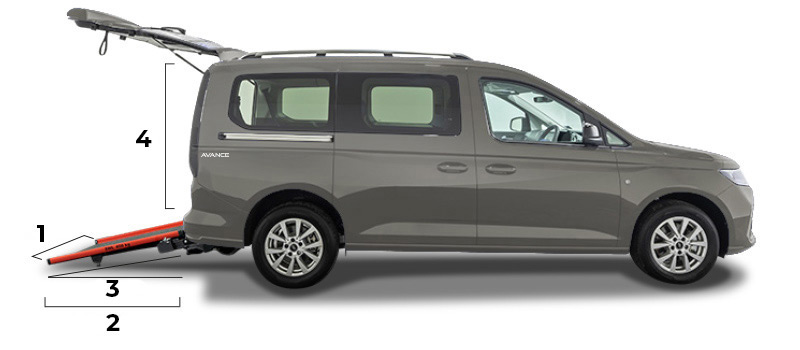

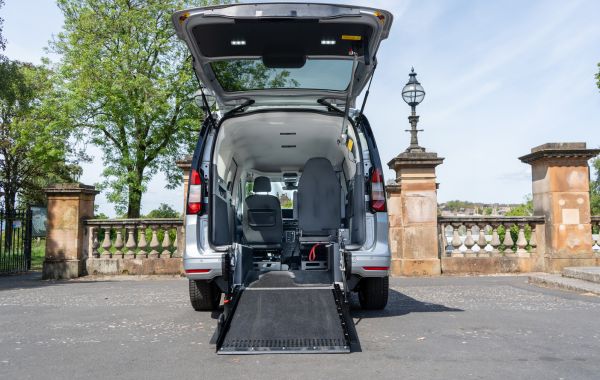

Ramp & Access Dimensions
| Key Measurements | Values |
|---|---|
| 1. Ramp Width (mm) | 740 |
| 2. Ramp Length (mm) | 1,230 |
| 3. Ramp Angle (°) | 9.5 |
| 4. Max Entry Height (mm) | 1,470 |
| Ramp Safe Working Load (kg) | 350 |
| Front & rear restraints max weight | 200 |
Engine Options
Automatic
| Spec | Values |
|---|---|
| Engine | 1.5L EcoBoost |
| Emission Control Standard | Euro 6d |
| Fuel Capacity | 50 |
| Start/stop Technology | Yes |
Features
Wheelchair User Safety & Convenience
- Automatic tailgate and wheelchair ramp
- Privacy glass (included as standard)
- Rear entry with automated tailgate and ramp

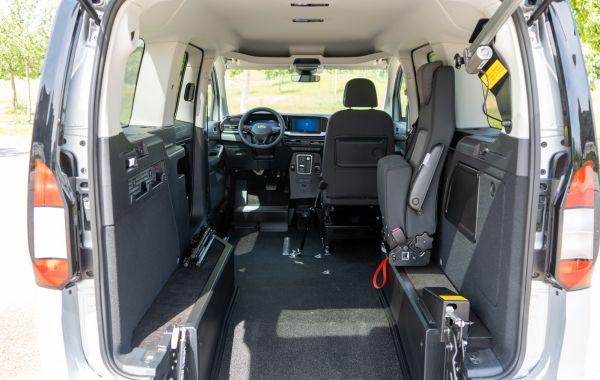

- Lowered floor offering maximum interior space
- The non-slip coating of the ramp improves traction on wet surfaces

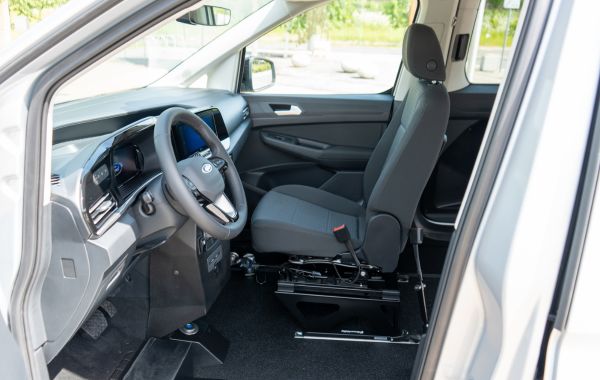

- Interchangeable front seats if you want to drive or ride in front as a passenger
- Up to three folding rear seats
- Push-button gear selector (optional)
Driver Safety & Convenience
- Air conditioning
- Front & rear parking sensors
- Pre-collision assist with auto emergency braking : Asistencia precolisión con frenada automática de emergencia
- Forward collision warning
- Lane Keeping aid
- Stop start
- Sensico gear shift knob and steering wheel
- Electrochromic inside mirror
- Automatic windshield wiper
- Electric windshield defroster
Audio & Entertainment

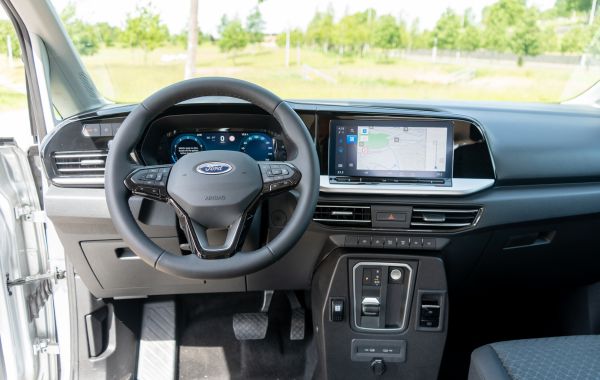

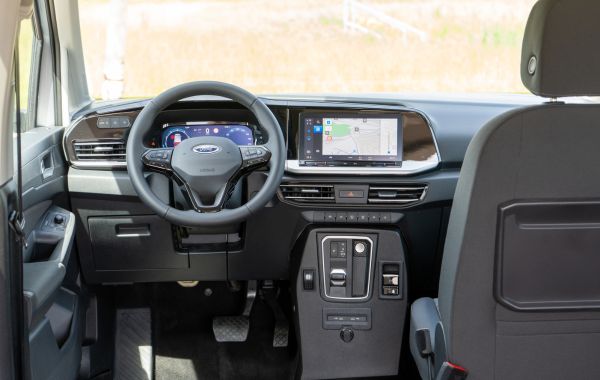

- 10" colour touchscreen
- Apple CarPlay™ & Android Auto
- Bluetooth® connectivity
- DAB Radio
- Navigation
- 6 speakers
Style
- 16" alloy wheels
- Front bumper with chrome insert
- Roof rack silver painted rails
- Seat fabric - Bubble Black with grey contrast stitching
