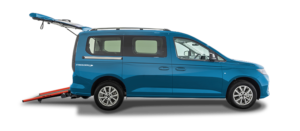

Boundless Blue*

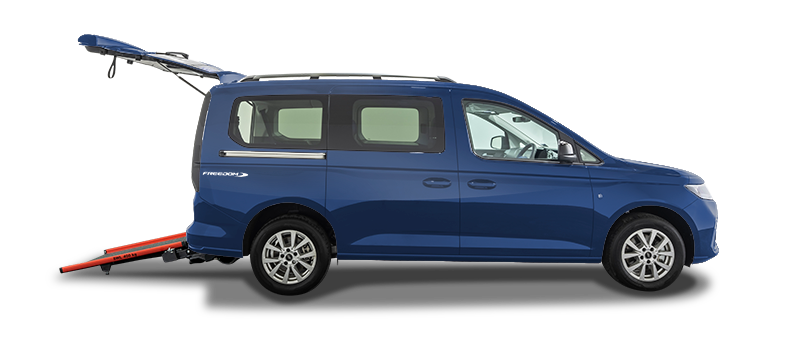

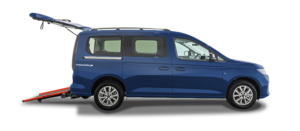

Midnight Blue*

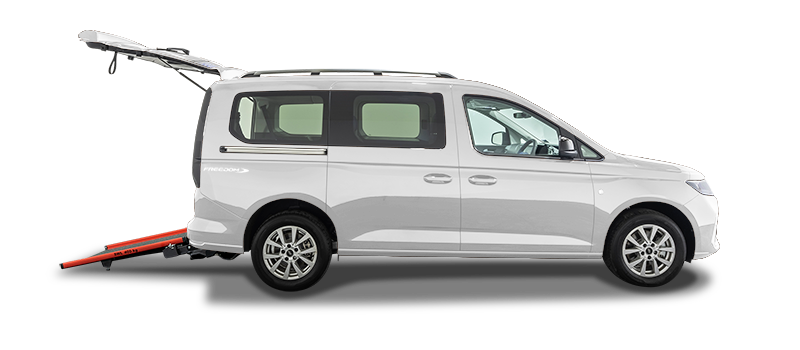

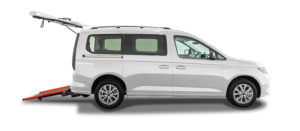

Frozen white*

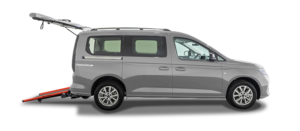

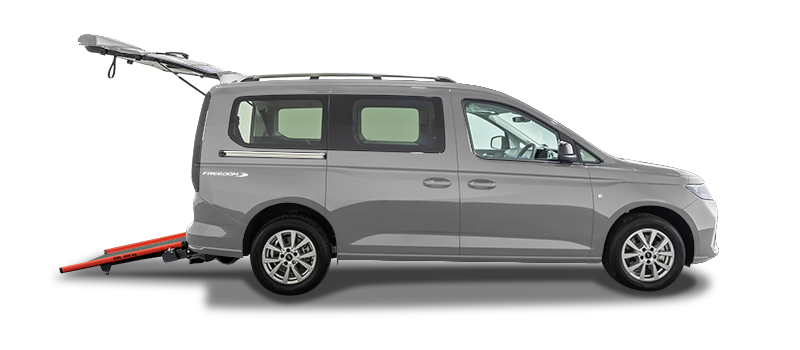

Stardust silver*

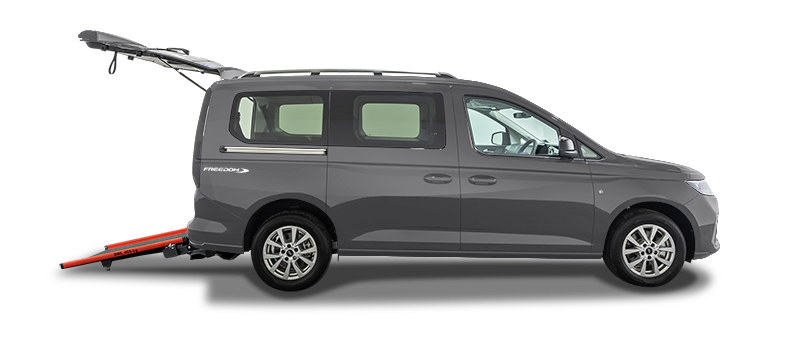

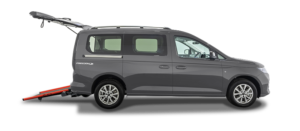

Comet Grey*

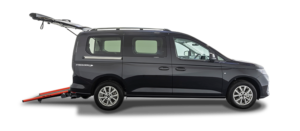

Black Ink*

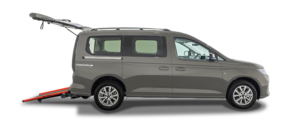

Dusky silver*

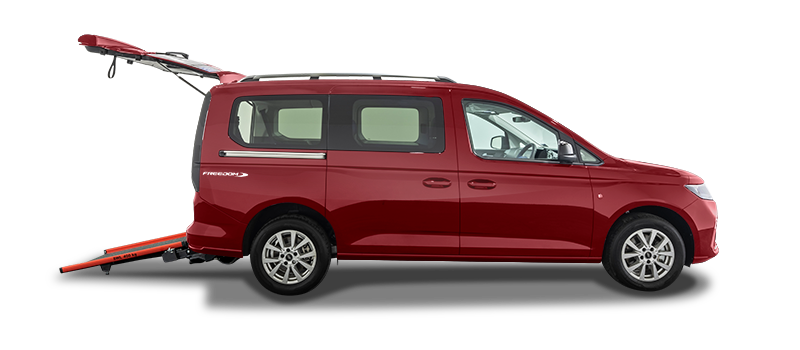

Maple red*

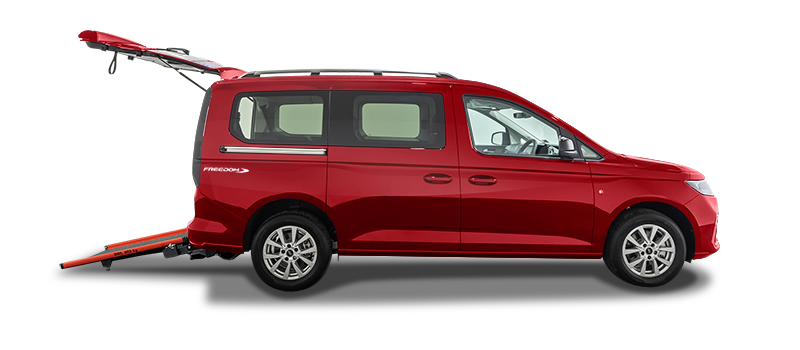

Lava red*

Choose Your Colour

*Colour palette for illustrative purposes only.

Ford Connect Freedom™

4-7 Seats | 1 Wheelchair

Ford Freedom™, available exclusively from Allied Mobility, marks a fabulous addition to our best-selling range of wheelchair accessible vehicles (WAVs).

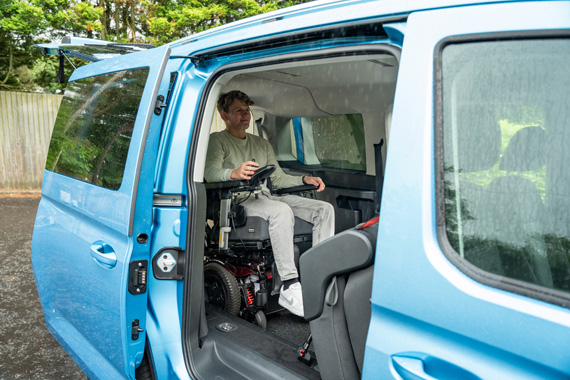

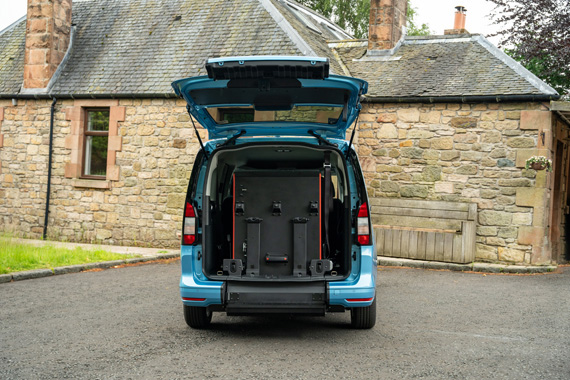

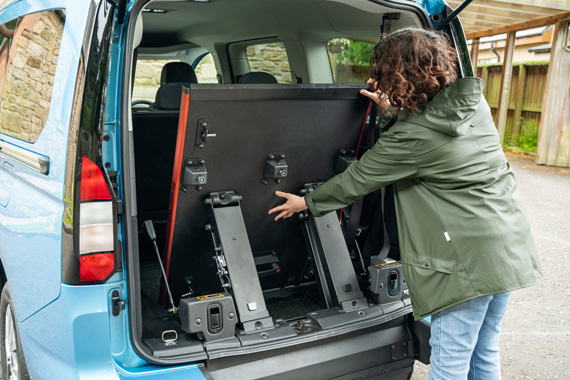

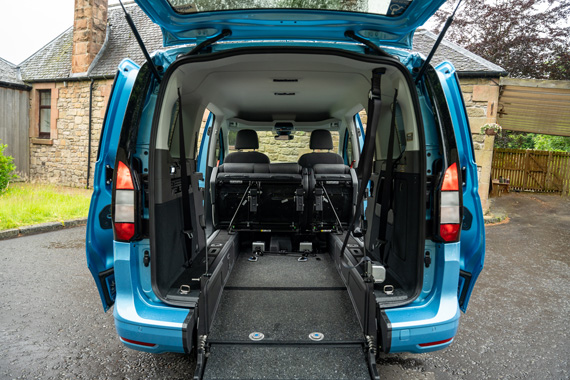

If you like Ford, you’ll love Freedom™. This stylish new car, comes in Titanium specification and combines ultra-modern comfort and style, with the latest in fuel-efficient, environmentally friendly performance. Most importantly, Freedom™ brings you superb usability for wheelchair users, with the unique SpaceLite™ access ramp.

Model Options

Ford Freedom™ is available in three models with different seating options (RS, RE, and RSX), in a long-wheelbase “L2” design. The Freedom RE is also available in L1, short wheelbase. Grand models are slightly longer and can therefore accommodate more seats or provide additional space for larger wheelchairs and power chairs, medical equipment, and luggage.

To compare the available layouts for each model and wheelbase, use the toggle below.

RE L1 Layout Options

4 Seats | 1 Wheelchair

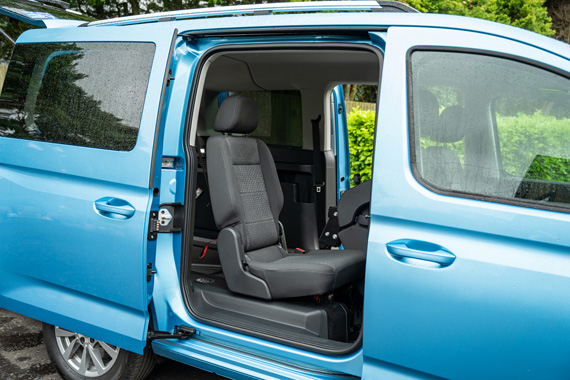

The layout below shows one original Ford passenger seat alongside the driver and one fixed seat (included as standard) alongside the wheelchair user.

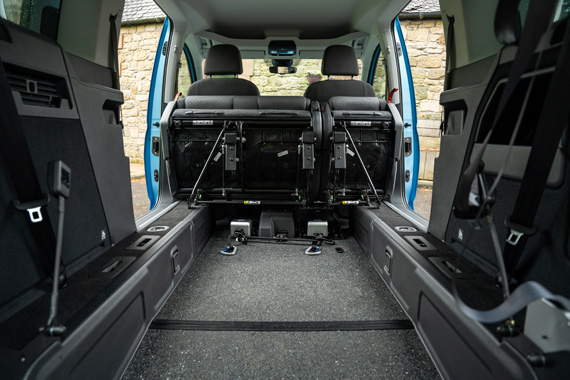

Wheelchair Travelling Position

Key Measurements	Values
Width (mm)	582
Length (mm)	1,535
Seated Eyeline (mm)	1,154
Height (mm)	1,392
Weight (kg)	200

RS L2 Layout Options

5 Seats | 1 Wheelchair

The layout shown below includes the original Ford rear seats. You can also add folding seats (at an additional cost) in the rear if needed.

Wheelchair Travelling Position

Key Measurements	Values
Width (mm)	790
Length (mm)	1,275
Seated Eyeline (mm)	1,257
Height (mm)	1,400
Weight (kg)	200

RS L2 Layout Options

7 Seats | 1 Wheelchair

The layout shown below includes the original Ford rear seats. You can also add folding seats (at an additional cost) in the rear if needed.

Wheelchair Travelling Position

Key Measurements	Values
Width (mm)	790
Length (mm)	1,275
Seated Eyeline (mm)	1,257
Height (mm)	1,400
Weight (kg)	200

RE L2 Layout Options

4 Seats | 1 Wheelchair

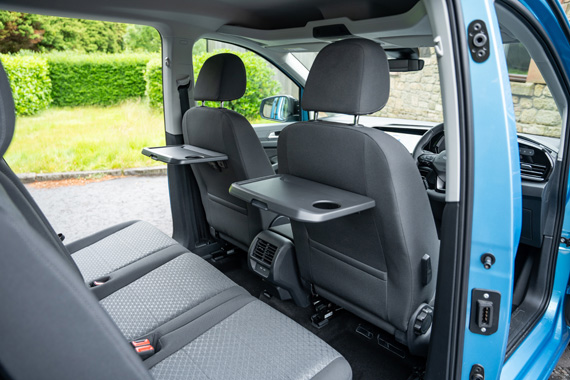

The following layout shows an original Ford passenger seat next to the driver and two fixed seats in the rear. Folding and rotating rear seats are also available (at an additional cost).

Wheelchair Travelling Position

Key Measurements	Values
Width (mm)	610
Length (mm)	1,880
Seated Eyeline (mm)	1,145
Height (mm)	1,381
Weight (kg)	200

RE L2 Layout Options

5 Seats | 1 Wheelchair

The following layout shows an original Ford passenger seat next to the driver and two fixed seats in the rear. Folding and rotating rear seats are also available (at an additional cost).

Wheelchair Travelling Position

Key Measurements	Values
Width (mm)	610
Length (mm)	1,880
Seated Eyeline (mm)	1,145
Height (mm)	1,381
Weight (kg)	200

RE L2 Layout Options

6 Seats | 1 Wheelchair

The following layout shows an original Ford passenger seat next to the driver and two fixed seats in the rear. Folding and rotating rear seats are also available (at an additional cost).

Wheelchair Travelling Position

Key Measurements	Values
Width (mm)	610
Length (mm)	1,880
Seated Eyeline (mm)	1,145
Height (mm)	1,381
Weight (kg)	200

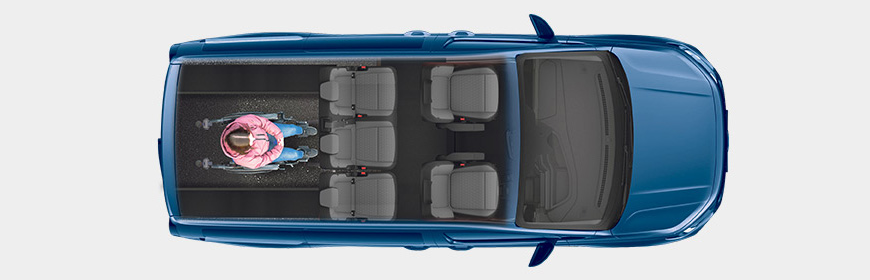

RSX L2 Layout Options

5 Seats | 1 Wheelchair

The layout shown below includes the original Ford rear seats. All or two of the second-row seats can be folded forward to create additional space for a wheelchair user if needed. Fold-down seats can also be added (at an additional cost) in the rear if required.

Wheelchair Travelling Position

Key Measurements	Values
Width (mm)	790
Length (mm)	1,580
Seated Eyeline (mm)	1,120
Height (mm)	1,391
Weight (kg)	200

RSX L2 Layout Options

7 Seats | 1 Wheelchair

Wheelchair Travelling Position

Key Measurements	Values
Width (mm)	790
Length (mm)	1,580
Seated Eyeline (mm)	1,120
Height (mm)	1,391
Weight (kg)	200

RSX L2 Layout Options

5 Seats | 1 Wheelchair

Wheelchair Travelling Position

Key Measurements	Values
Width (mm)	790
Length (mm)	1,580
Seated Eyeline (mm)	1,120
Height (mm)	1,391
Weight (kg)	200

Speak to your Mobility Advisor about the seating layouts available.

Dimensions PDF

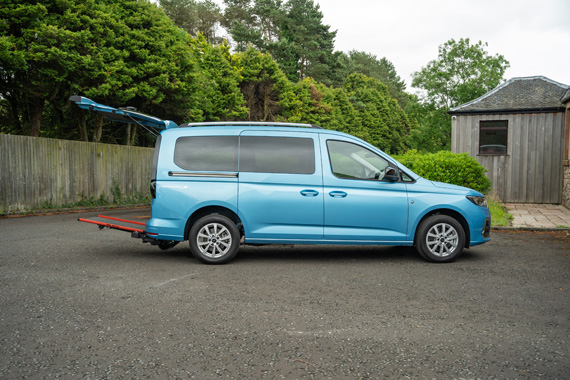

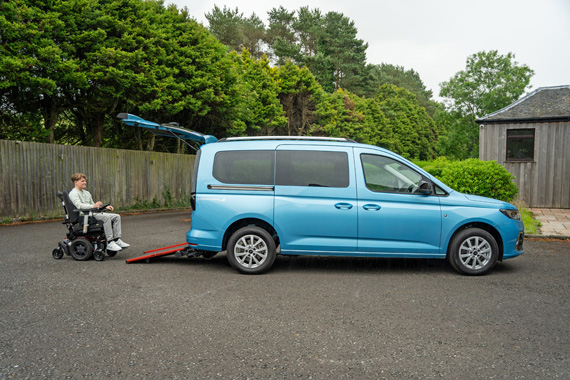

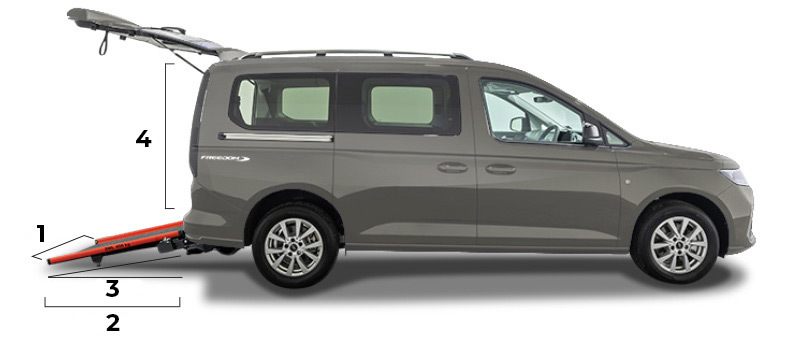

Ramp & Access Dimensions

Key Measurements	Values
1. Ramp Width (mm)	758
2. Ramp Length (mm)	1,215
3. Ramp Angle (°)	14.5
4. Max Entry Height (mm)	1,370

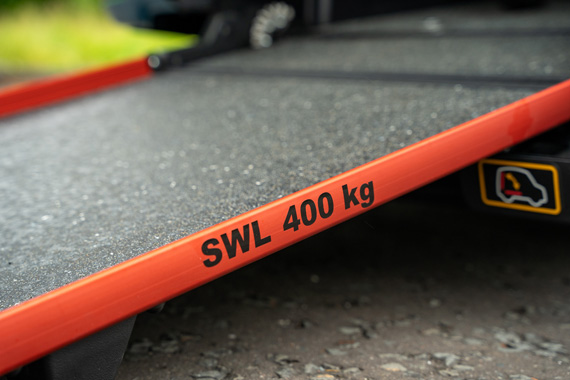

Ramp Safe Working Load (kg)	400
Front & rear restraints max weight	200
Electric winch max weight	275

What our customers say

“Allied Mobility clearly explained the duration of [the procedure] to us and were fully aware of Stephen's condition and how important it was for us to get him out and moving.”

Catherine

Engine Options

Diesel Automatic

Spec	Values
Engine	2.0L EcoBlue 122 PS
Emission Control Standard	Euro 6.2
Fuel Capacity	50
Start/stop Technology	Yes

Petrol Automatic

Spec	Values
Engine	1.5L EcoBoost 115PS
Emission Control Standard	Euro 6.2
Fuel Capacity	50
Start/stop Technology	Yes

Features

Wheelchair User Safety & Convenience

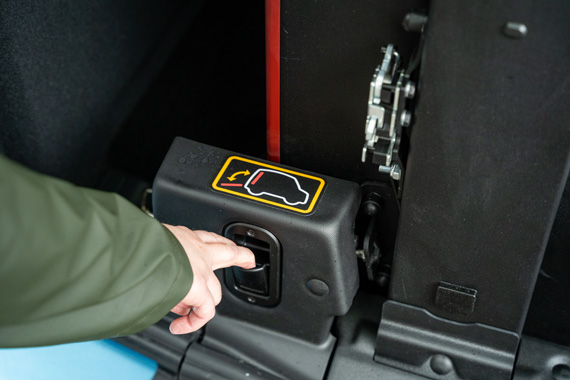

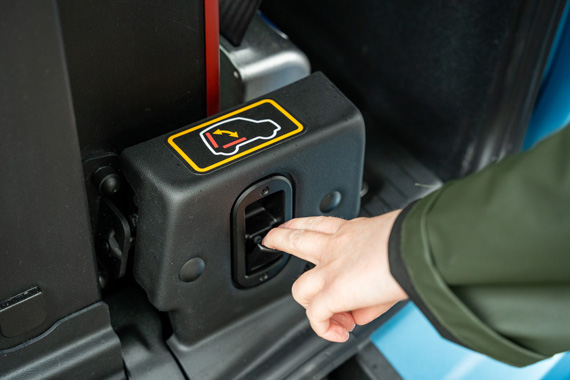

Electric-assist winch (included as standard)
Privacy glass (included as standard)

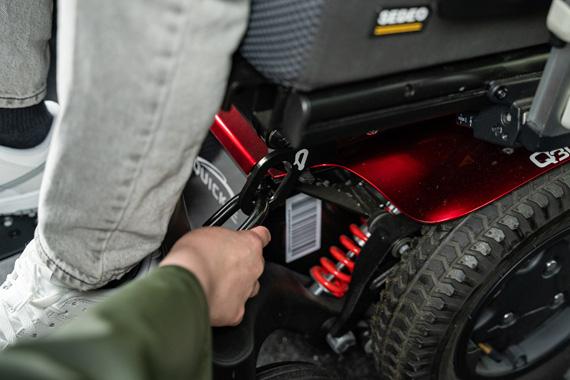

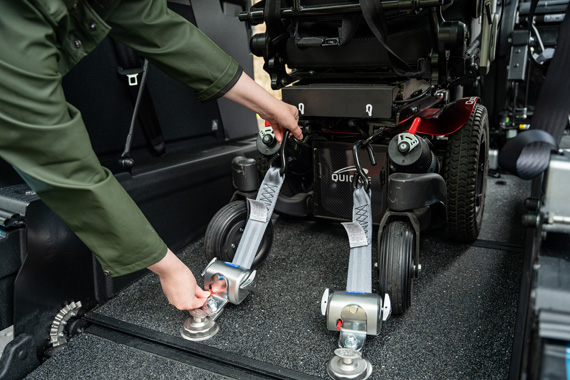

85kg, 150kg or 200kg wheelchair restraints

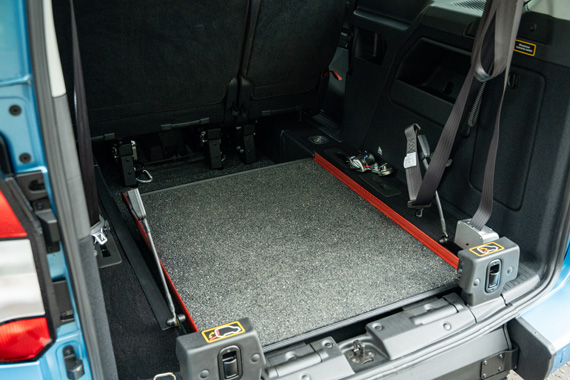

SafeStep R12 slip-resistant flooring
Adjustable three-section seat belt
Transfer plate (optional extra)

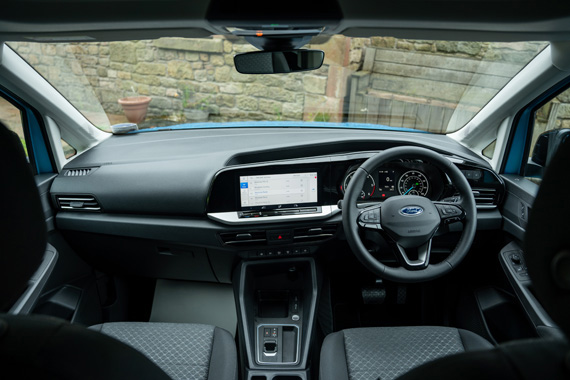

Driver Safety & Convenience

Air conditioning
Factory fitted Sat Nav
Adaptive cruise control
Pre-collision assist and forward collision warning
Electric & heated door mirrors
Electric front windows
Heated windscreen
Keyless start
Ford App connectivity with remote start (automatic version only)
Front & rear parking sensors
Rear view camera
Pop-out row two windows

Audio & Entertainment

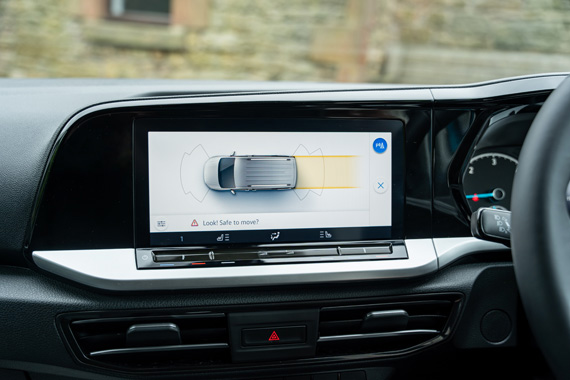

10" media centre with Apple CarPlay and Android Auto
Bluetooth® connectivity
DAB Radio & MP3
Ford Pass Connect
USB connectivity

Style

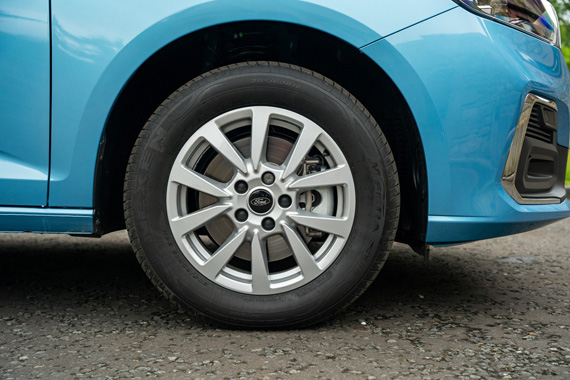

16" alloy wheels
Original Ford seating with ISOFIX
